ggplot2 graphics are automatically embedded in Word documents by Quarto. But without further settings, they are often too small, have the wrong resolution, or unreadable labels. In this chapter, you will learn how to optimally configure plots for Word documents.

A simple plot

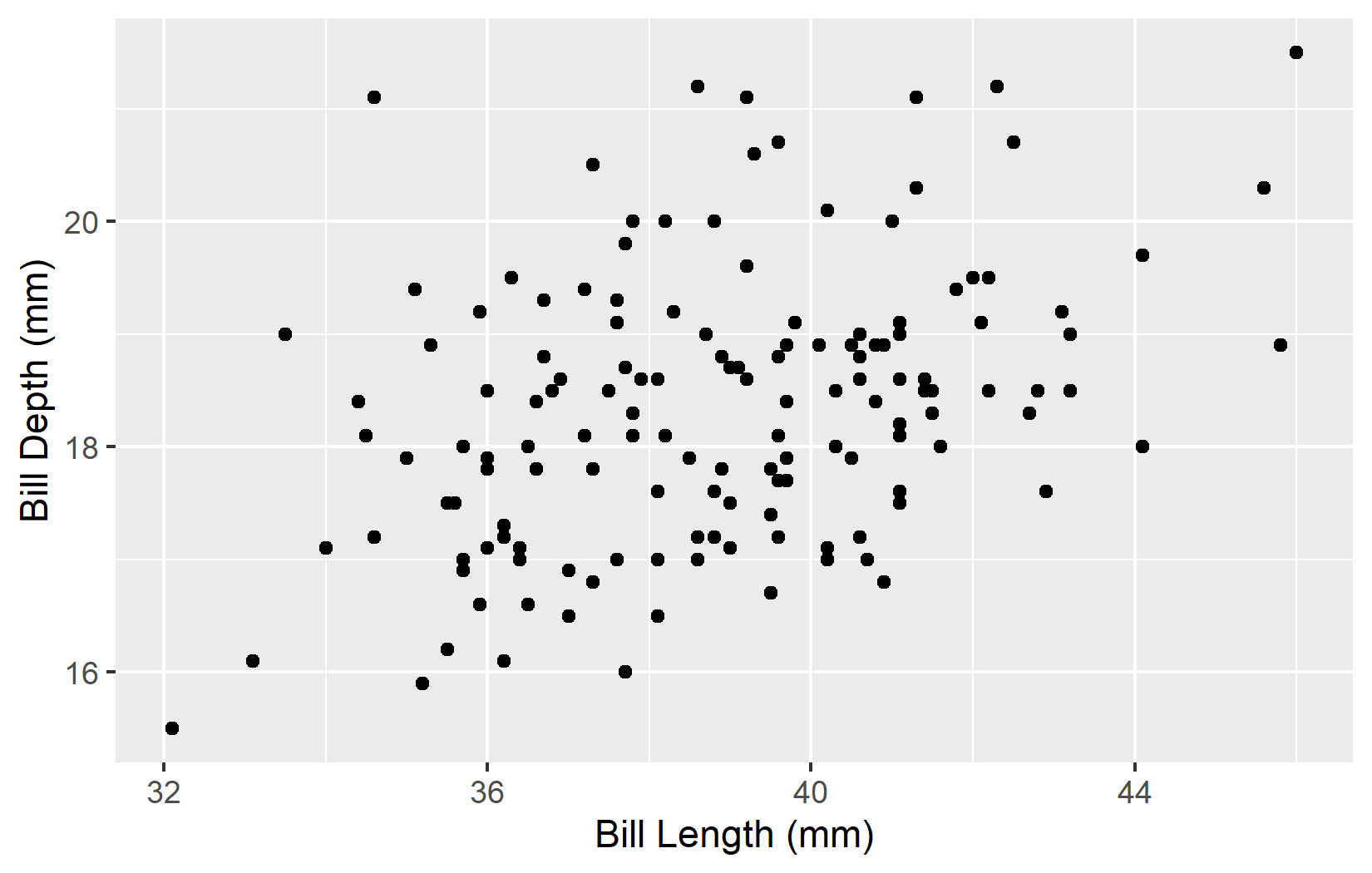

Let us start with a scatterplot of bill measurements:

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)"
  )

The plot appears, but the size and proportions may not be ideal for the document.

Controlling size

fig-width and fig-height

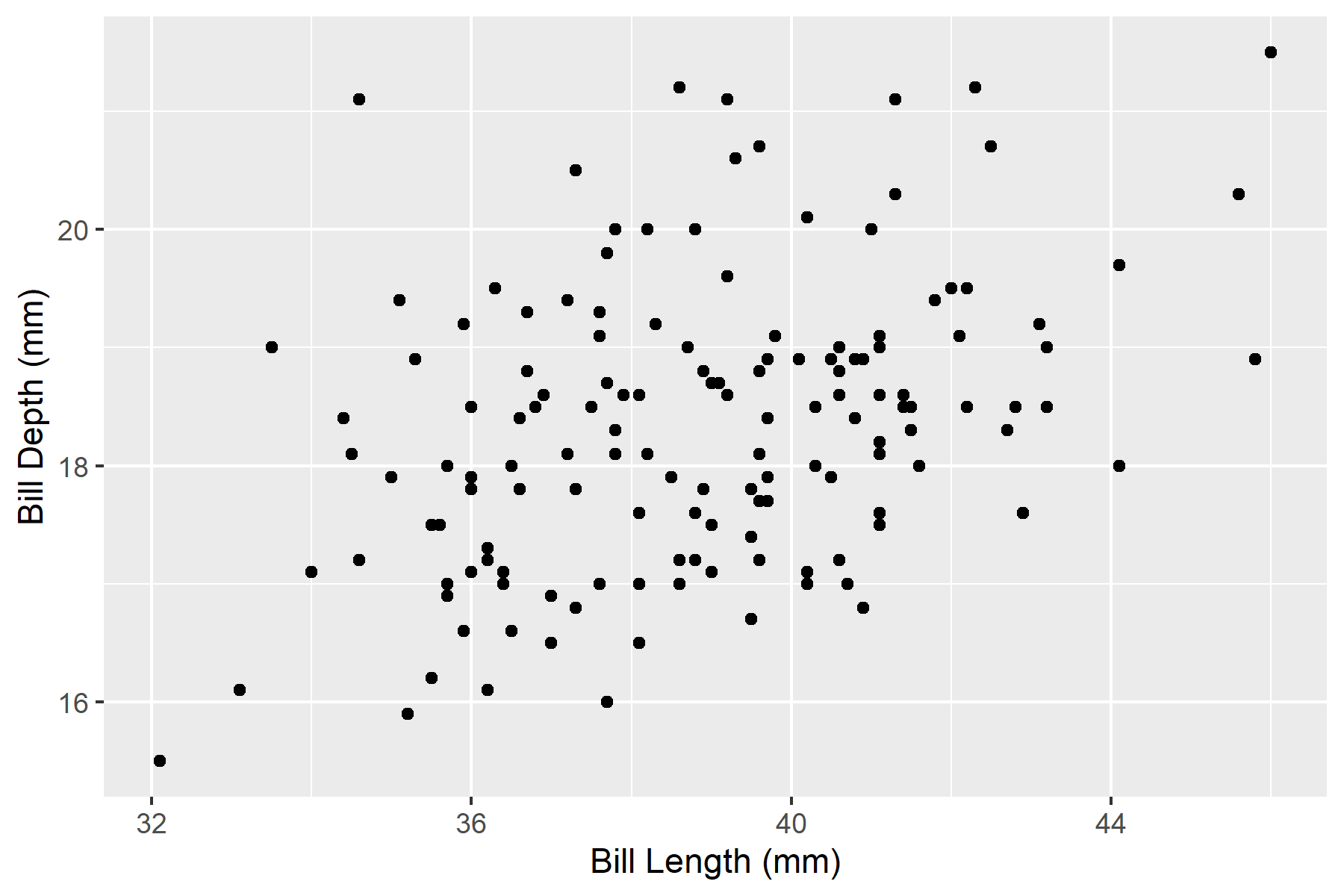

The most important chunk options for plot sizes are fig-width and fig-height (in inches):

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)"
  )

Tip

Typical sizes for Word documents:

Full width: fig-width: 6.5 (corresponds to text width with standard margins)
Half width: fig-width: 3.25
Square: fig-width: 4, fig-height: 4

Aspect ratio

For certain plot types, certain aspect ratios are better suited:

Plot type	Recommended ratio
Scatterplot	4:3 or 16:9
Bar chart (horizontal)	wider than tall
Bar chart (vertical)	taller than wide
Time series	16:9 or 2:1

Resolution

fig-dpi

Resolution is controlled with fig-dpi (dots per inch):

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point() +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)"
  )

Recommendations:

96 dpi: Screen/web (fast rendering)
150 dpi: Drafts
300 dpi: Print quality (standard for publications)
600 dpi: High-quality prints

Note

Higher DPI means larger files and longer render times. For drafts, you can work with lower resolution and only increase to 300 dpi for the final version.

Figure captions

fig-cap

A figure caption is added with fig-cap:

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point(alpha = 0.6) +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)"
  ) +
  theme_minimal()

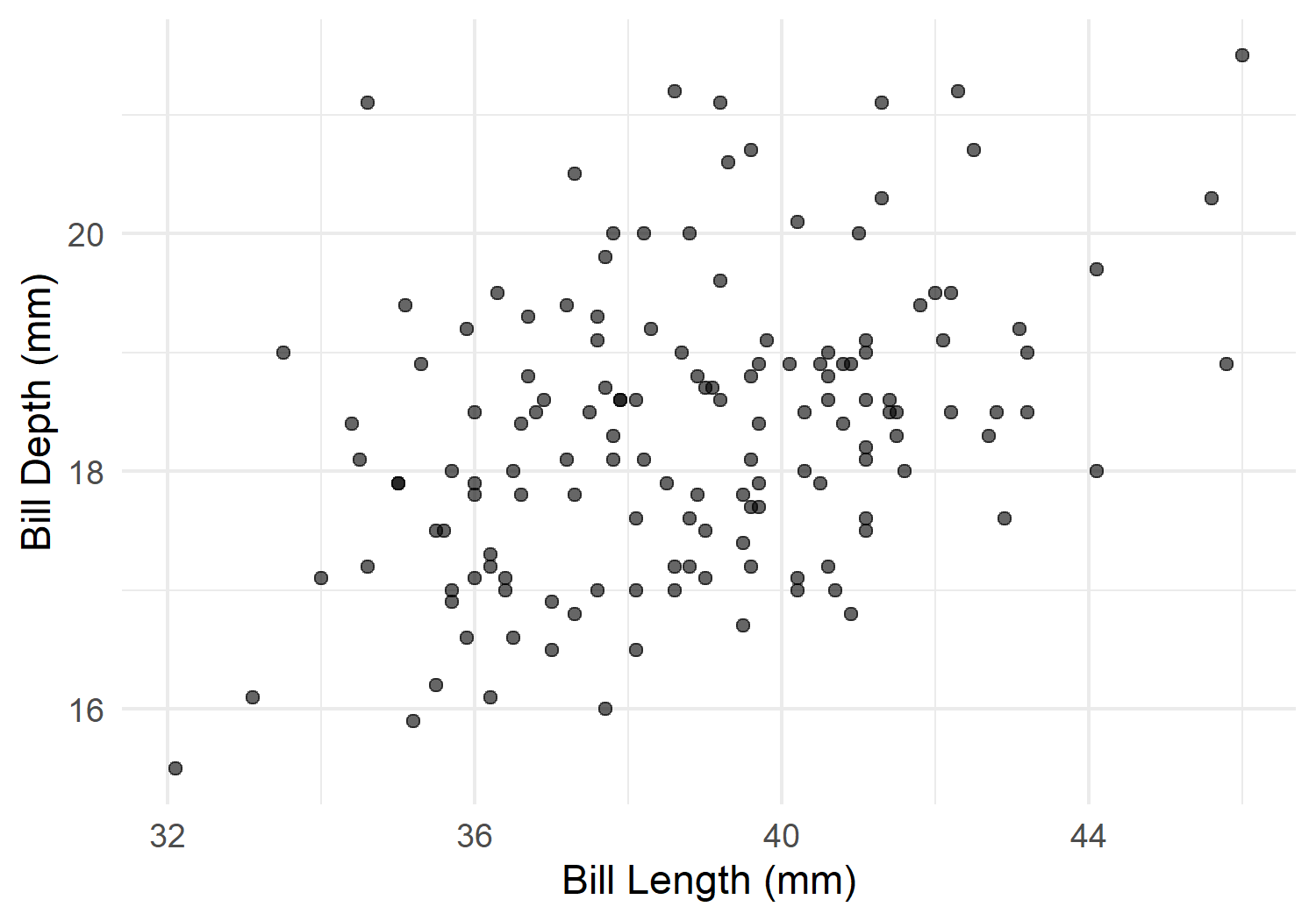

Figure 1: Relationship between bill length and bill depth in Adelie penguins.

Important

For cross-references (Chapter 7), the label must start with fig-!

Themes for publication-ready plots

Standard themes

ggplot2 offers several built-in themes:

p <- ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point(alpha = 0.6) +
  labs(x = "Bill Length (mm)", y = "Bill Depth (mm)")

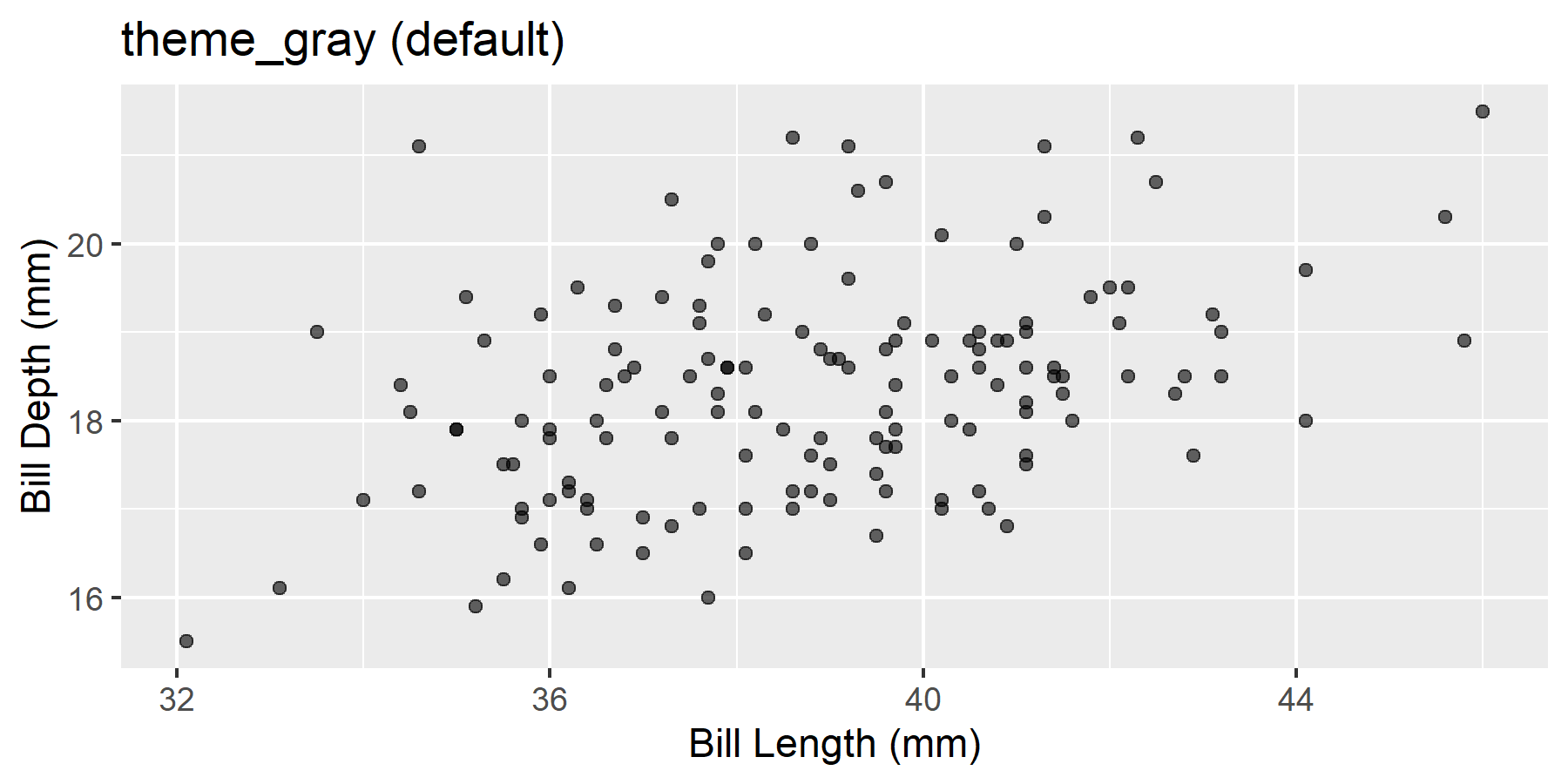

p + theme_gray() + ggtitle("theme_gray (default)")

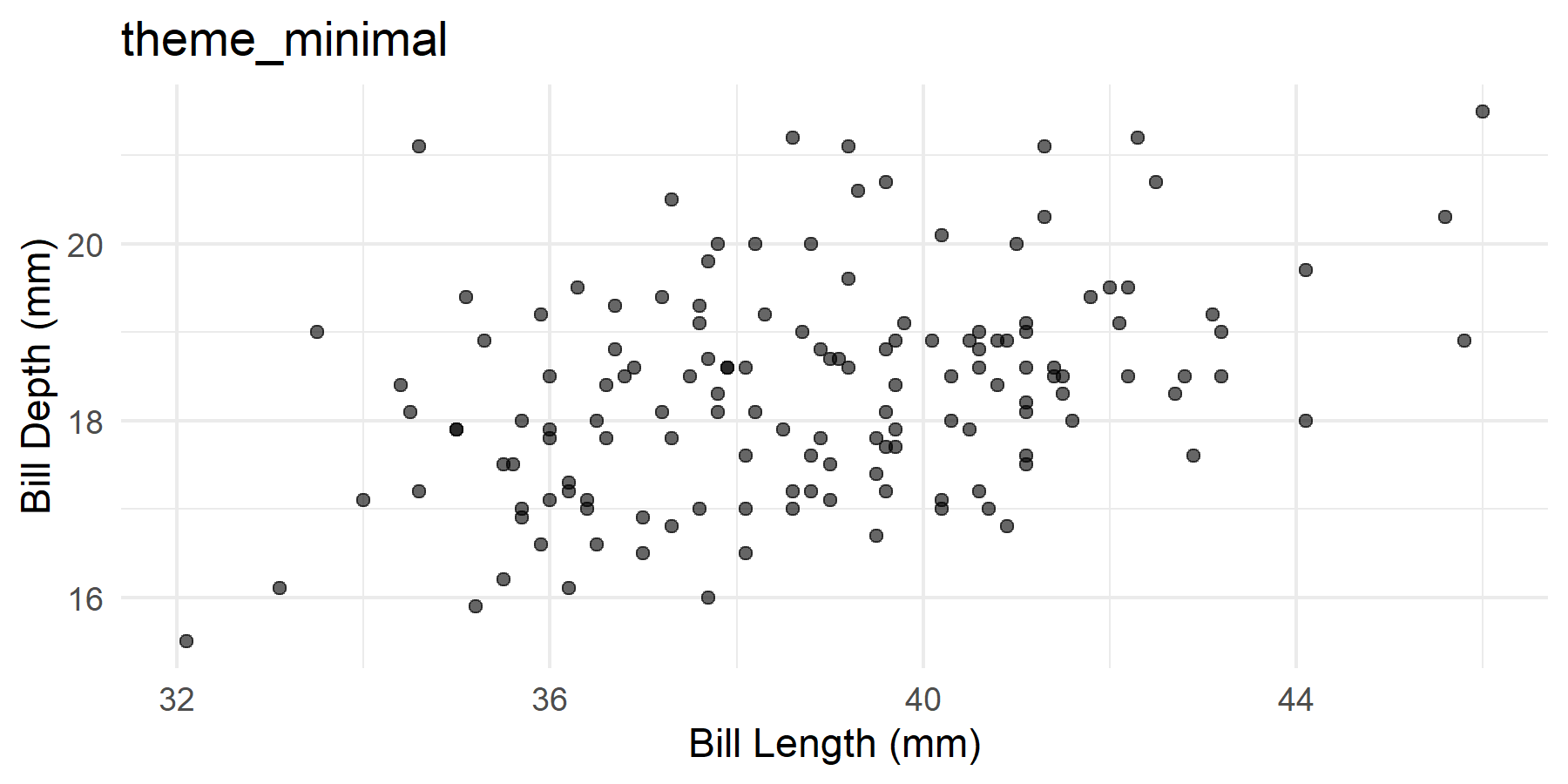

p + theme_minimal() + ggtitle("theme_minimal")

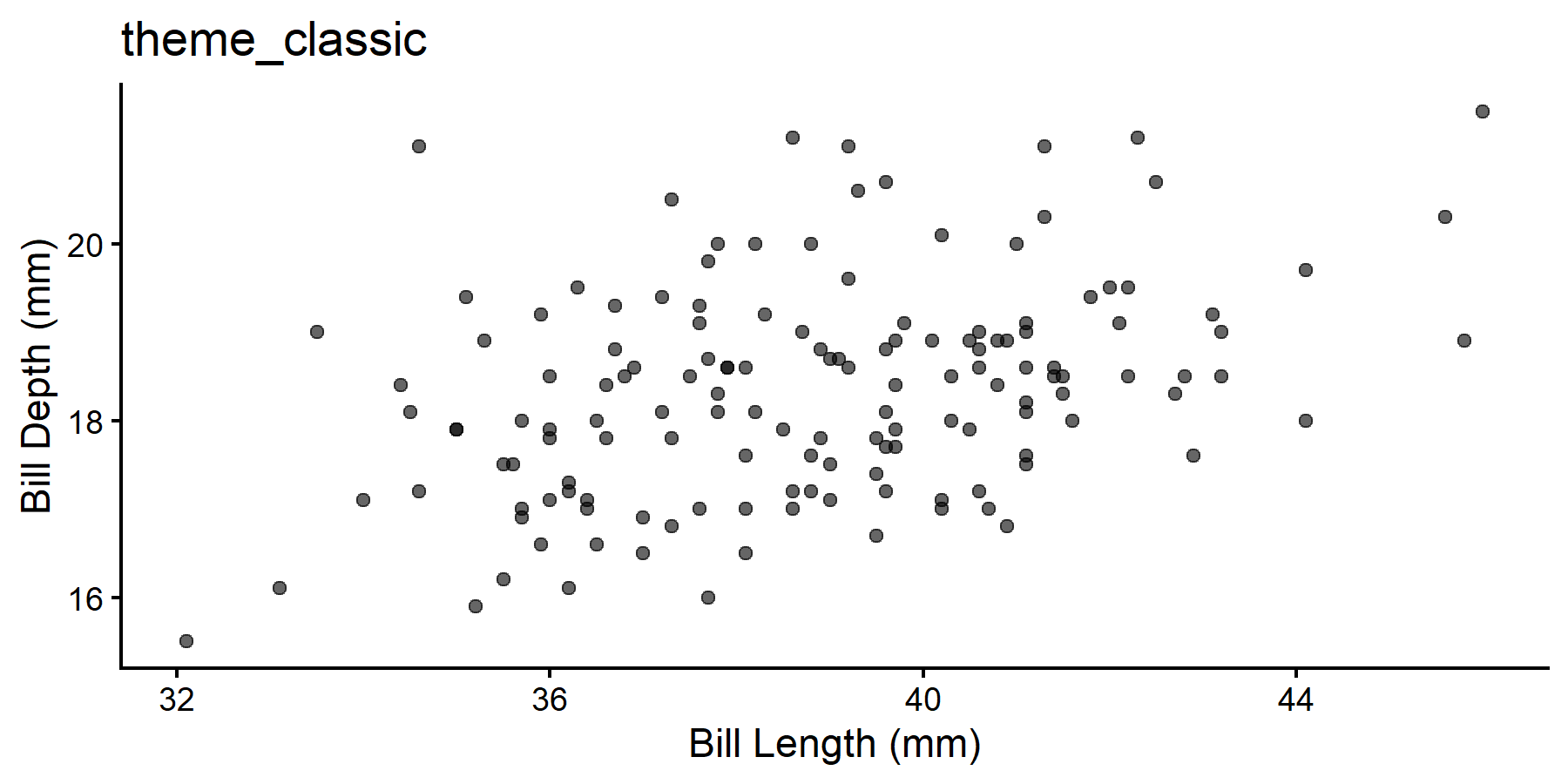

p + theme_classic() + ggtitle("theme_classic")

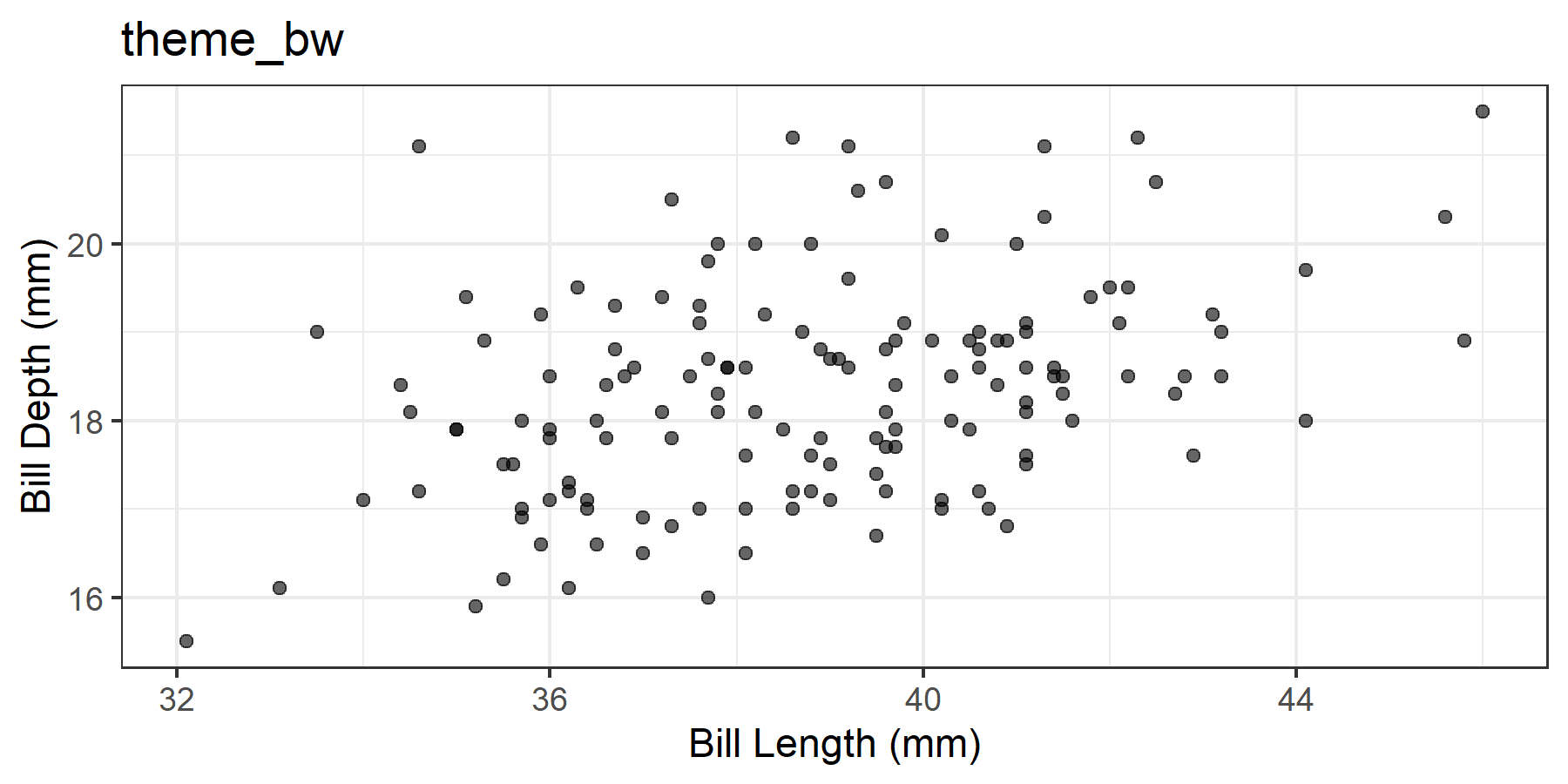

p + theme_bw() + ggtitle("theme_bw")

For scientific publications, theme_minimal(), theme_classic(), or theme_bw() are most common.

Adjusting font sizes

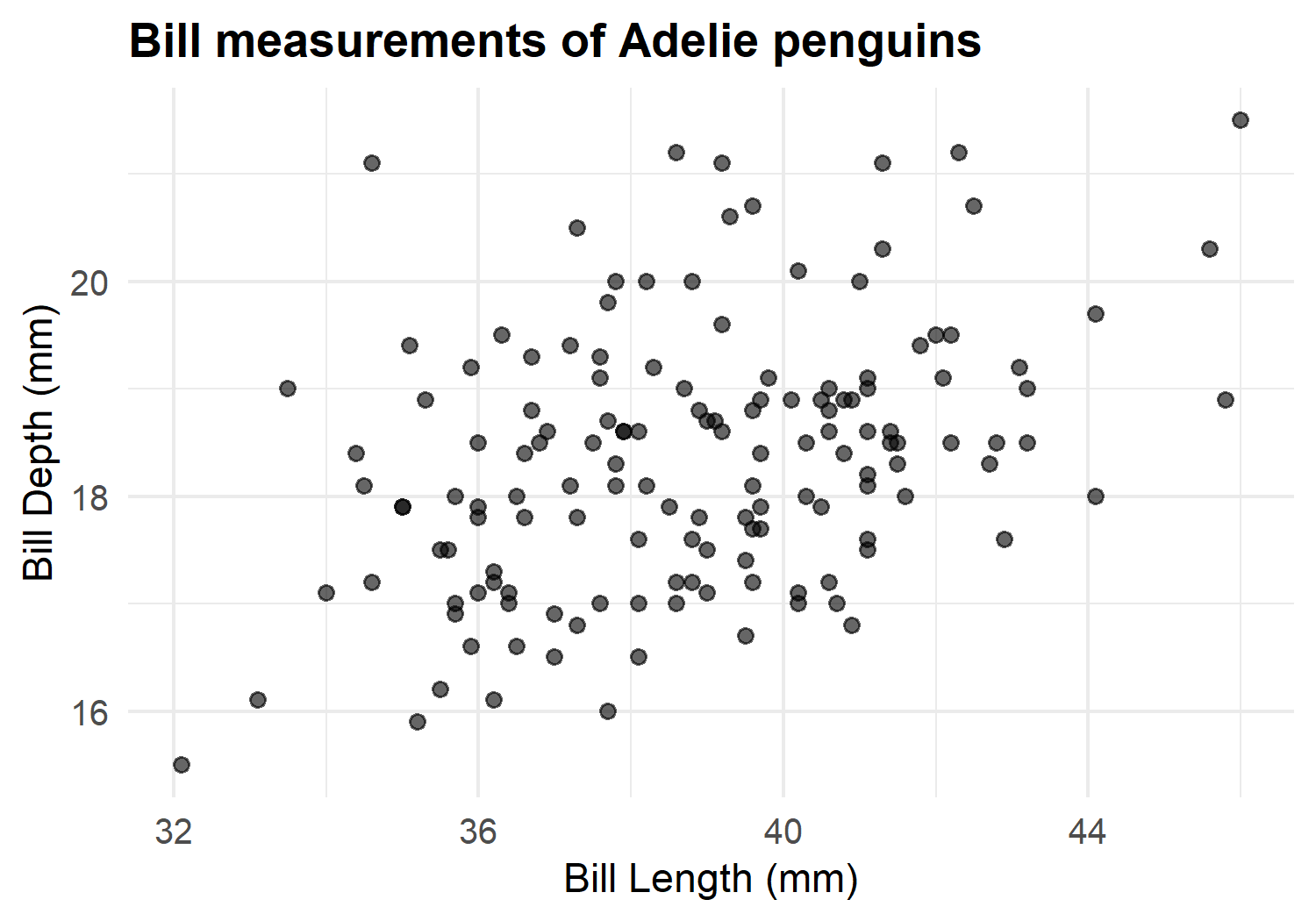

A common problem: Labels are too small in the rendered document. This can be fixed with theme():

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point(alpha = 0.6) +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)",
    title = "Bill measurements of Adelie penguins"
  ) +
  theme_minimal(base_size = 12) +
  theme(
    axis.title = element_text(size = 11),
    plot.title = element_text(size = 13, face = "bold")
  )

Tip

base_size in theme_minimal(base_size = 12) scales all text elements proportionally. This is often easier than adjusting each element individually.

Colors

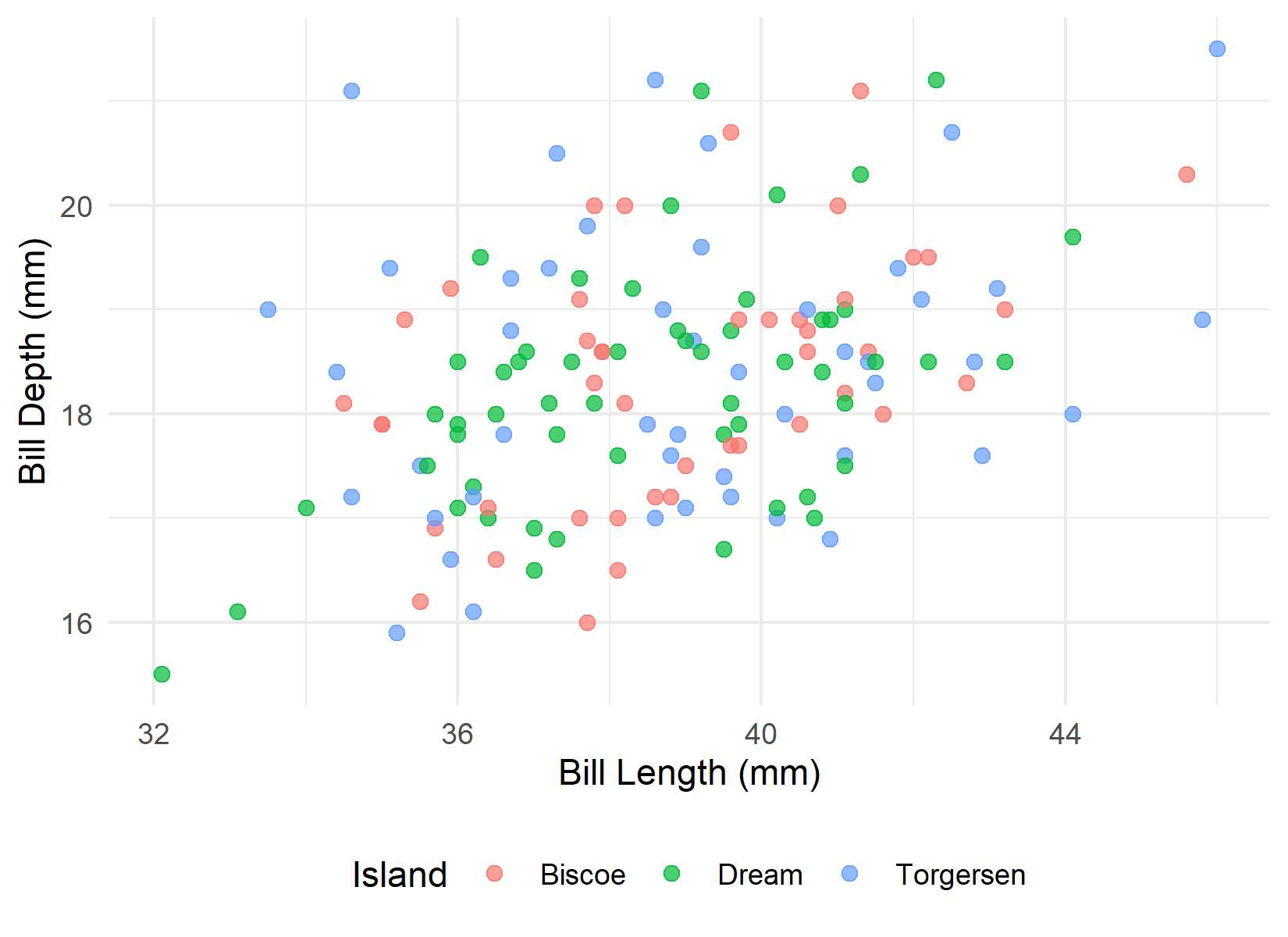

Coloring by groups

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm, color = island)) +
  geom_point(alpha = 0.7, size = 2) +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)",
    color = "Island"
  ) +
  theme_minimal(base_size = 11) +
  theme(legend.position = "bottom")

Color palettes

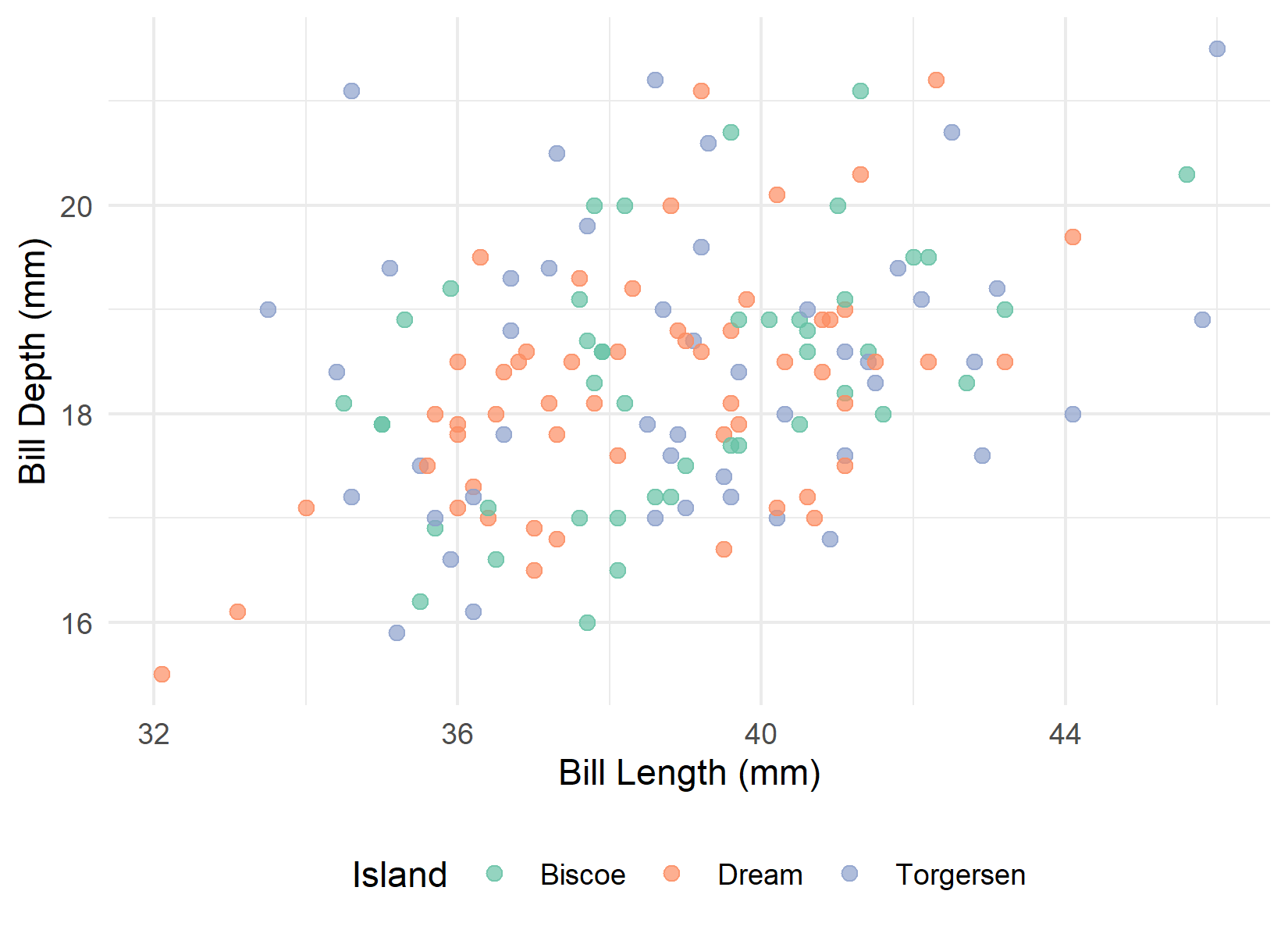

For scientific publications, I recommend colorblind-friendly palettes:

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm, color = island)) +
  geom_point(alpha = 0.7, size = 2) +
  scale_color_brewer(palette = "Set2") +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)",
    color = "Island"
  ) +
  theme_minimal(base_size = 11) +
  theme(legend.position = "bottom")

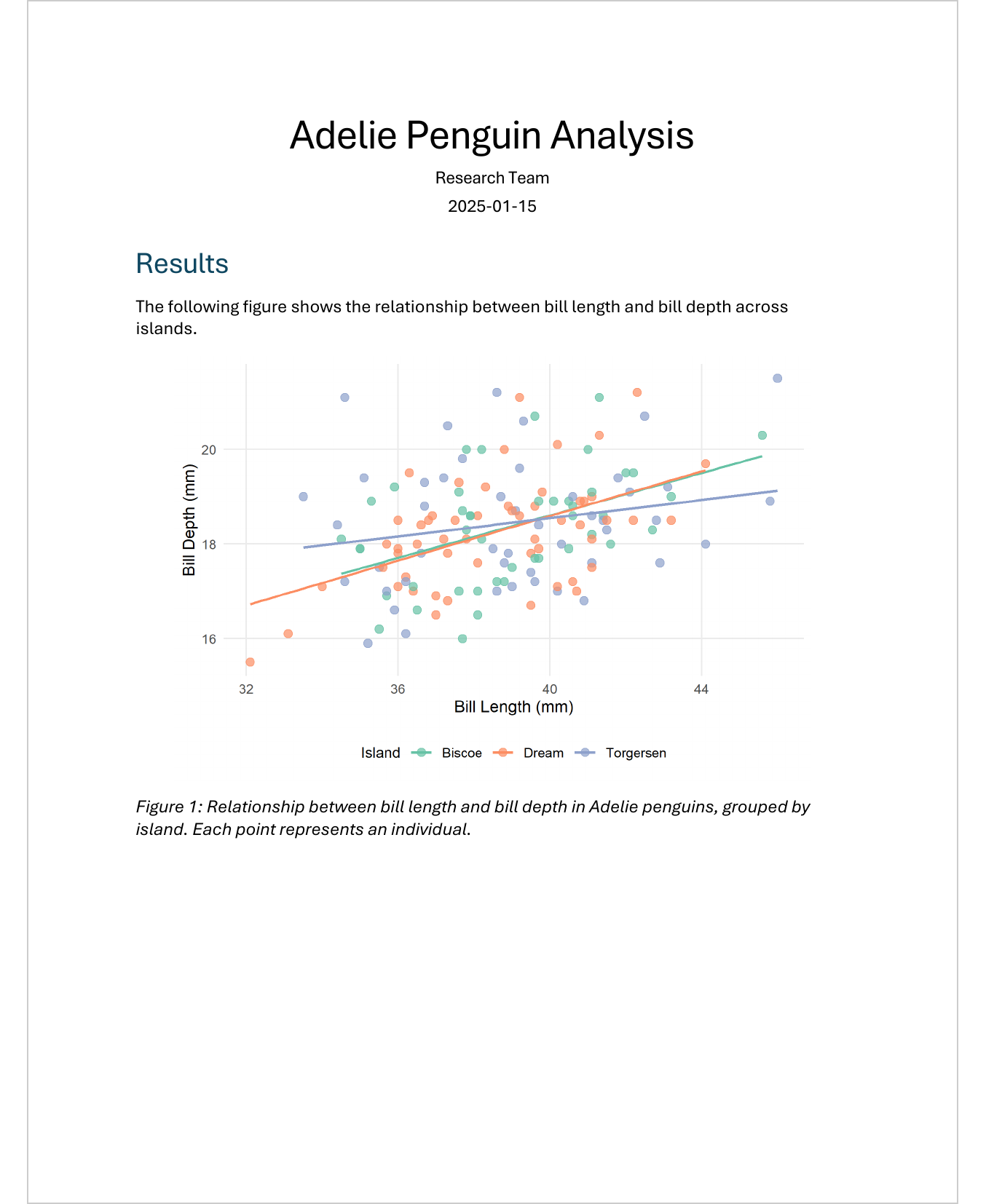

The plot for our report

Here is a complete, publication-ready plot for our penguin report:

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm, color = island)) +
  geom_point(alpha = 0.7, size = 2.5) +
  geom_smooth(method = "lm", se = FALSE, linewidth = 0.8) +
  scale_color_brewer(palette = "Set2") +
  labs(
    x = "Bill Length (mm)",
    y = "Bill Depth (mm)",
    color = "Island"
  ) +
  theme_minimal(base_size = 11) +
  theme(
    legend.position = "bottom",
    panel.grid.minor = element_blank(),
    axis.title = element_text(size = 11),
    legend.title = element_text(size = 10),
    legend.text = element_text(size = 9)
  )

`geom_smooth()` using formula = 'y ~ x'

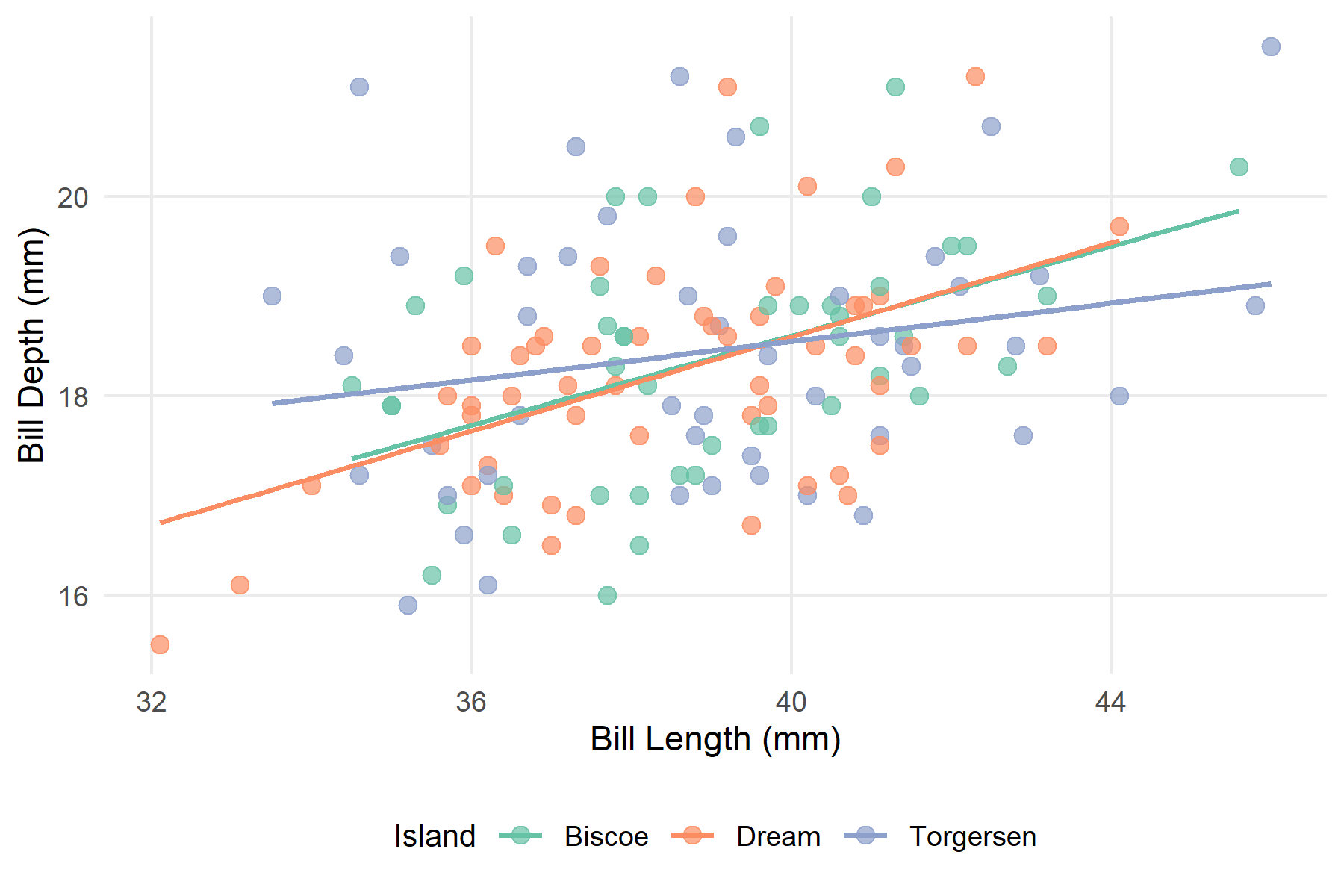

Figure 2: Relationship between bill length and bill depth in Adelie penguins, grouped by island. Each point represents an individual.

Global plot settings

To avoid repeating the same options in every chunk, you can set global settings in the YAML header:

---
title: "My Report"
format: docx
knitr:
  opts_chunk:
    fig-width: 6
    fig-height: 4
    fig-dpi: 300
---

Or with execute: for Quarto-specific options:

execute:
  fig-width: 6
  fig-height: 4

Multiple plots

Layout in Quarto

With layout-ncol, you can arrange multiple plots side by side:

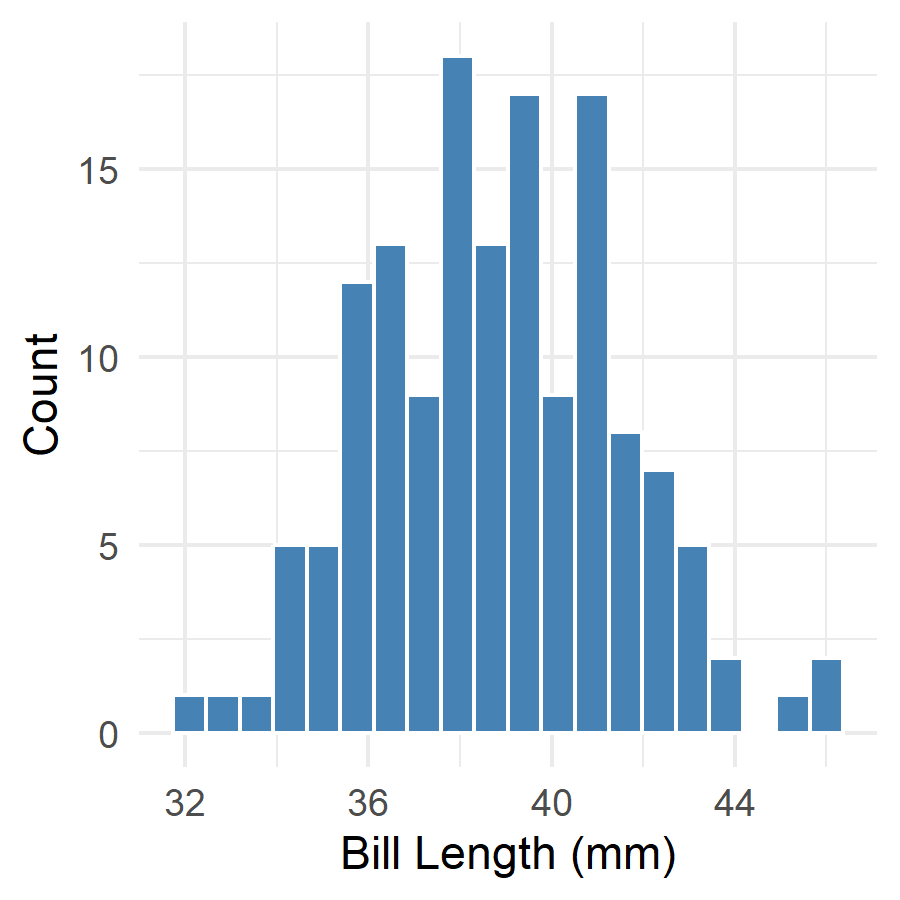

ggplot(adelie, aes(x = bill_length_mm)) +
  geom_histogram(bins = 20, fill = "steelblue", color = "white") +
  labs(x = "Bill Length (mm)", y = "Count") +
  theme_minimal()

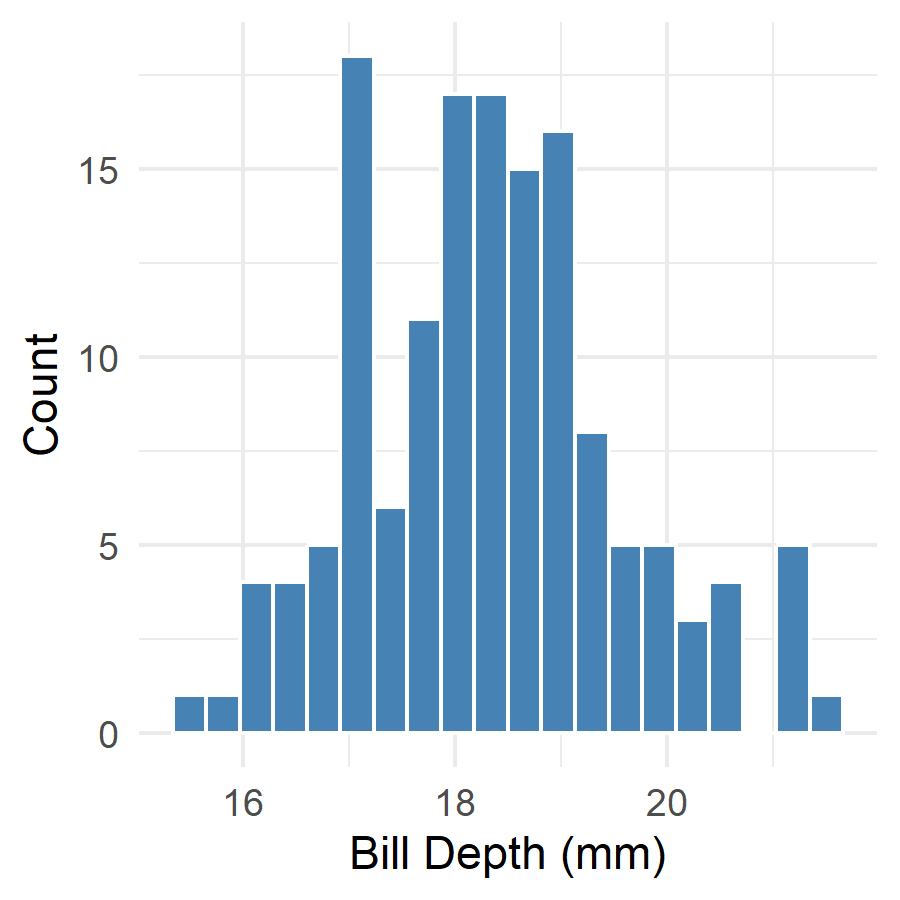

ggplot(adelie, aes(x = bill_depth_mm)) +
  geom_histogram(bins = 20, fill = "steelblue", color = "white") +
  labs(x = "Bill Depth (mm)", y = "Count") +
  theme_minimal()

Exercise: Create a publication-ready plot

Create a boxplot of body mass (body_mass_g) by island
Set appropriate axis labels
Use theme_minimal() with adjusted base_size
Add a figure caption with fig-cap
Experiment with different fig-width and fig-height values

Further resources

Quarto Figures — Official documentation
ggplot2 book — Comprehensive ggplot2 reference
R Graphics Cookbook — Practical recipes

What is next

We can now create tables and plots. In Chapter 7, we will learn how to use cross-references to refer to these elements — “as shown in Figure 1” or “see Table 2”.
