7. Cross-References

In scientific documents, you often refer to tables, figures, or specific sections: “as shown in Table 1” or “see Figure 3”. With Quarto’s cross-reference system, these references are automatically numbered and updated — if you add or remove a figure, all numbers adjust automatically.

The basic principle

Cross-references work in two steps:

1. Assign a label: The element (table, figure, section) gets a unique label
2. Reference it: In the text, you refer to the element with @label

Quarto automatically replaces @label with the correct number and turns it into a clickable link.

Referencing figures

Assigning a label

The label must start with fig-:

ggplot(adelie, aes(x = bill_length_mm, y = bill_depth_mm)) +
  geom_point(alpha = 0.6) +
  labs(x = "Bill Length (mm)", y = "Bill Depth (mm)") +
  theme_minimal()

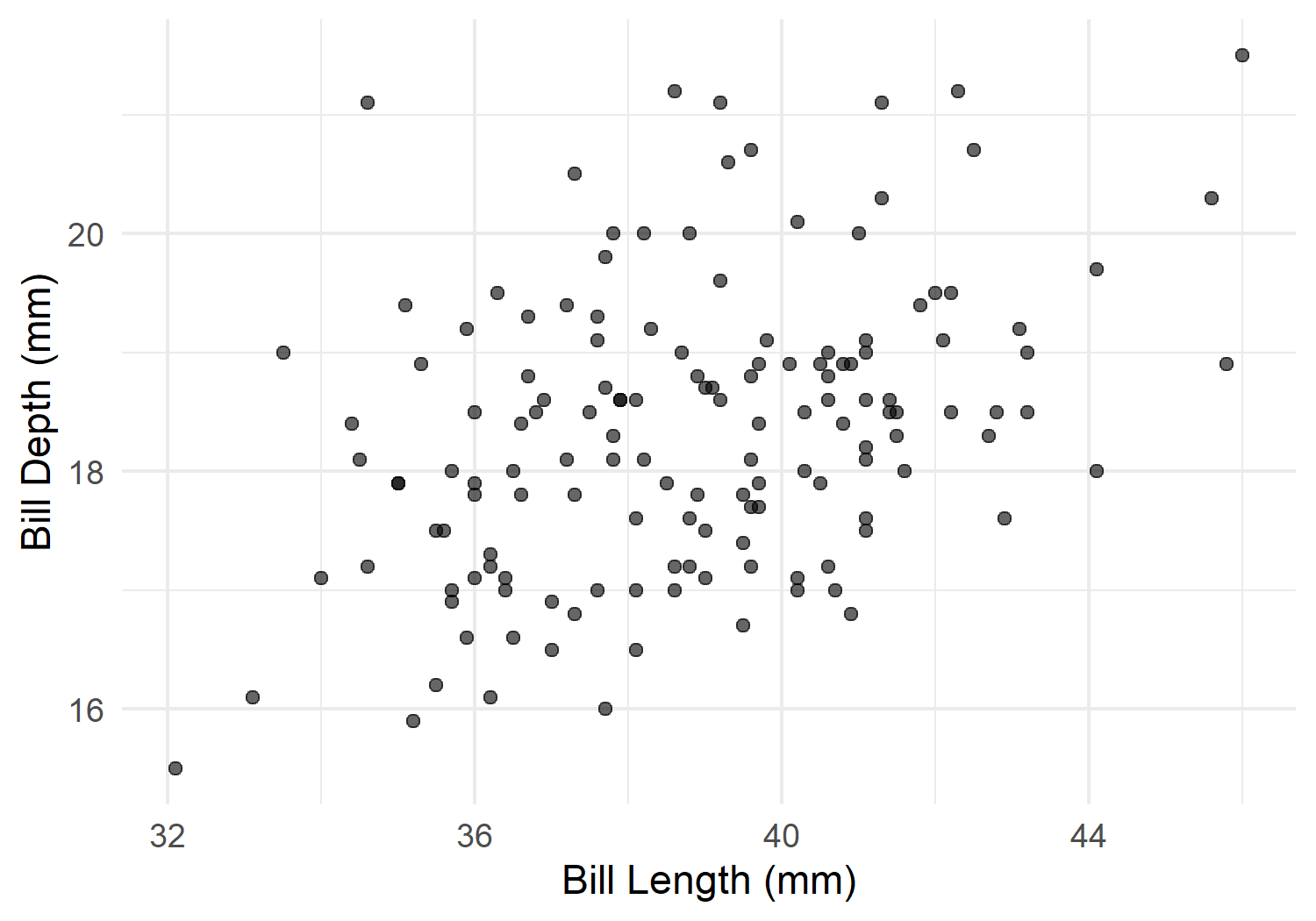

Figure 1: Bill measurements of Adelie penguins

Referencing in text

In the body text, you write:

As shown in @fig-scatter, there is a positive relationship between bill length and depth.

This becomes: As shown in Figure 1, there is a positive relationship between bill length and depth.

Important

For cross-references to work, the figure needs both a label (with fig- prefix) and a fig-cap (figure caption).

Referencing tables

Assigning a label

The label must start with tbl-:

adelie %>%
  summarise(
    N = n(),
    `Bill Length (mm)` = round(mean(bill_length_mm), 1),
    `Body Mass (g)` = round(mean(body_mass_g), 0)
  ) %>%
  flextable() %>%
  autofit()

Table 1: Descriptive statistics of Adelie penguins

N	Bill Length (mm)	Body Mass (g)
146	38.8	3,706

Referencing in text

@tbl-summary shows the key statistics.

This becomes: Table 1 shows the key statistics.

Referencing sections

Assigning a label

Sections receive their label directly after the heading:

# Methods {#sec-methods}

Here we describe the methods...

# Results {#sec-results}

The results were obtained using the methods described in @sec-methods.

Nested sections

## Data Collection {#sec-data-collection}

### Sample {#sec-sample}

As described in @sec-data-collection...

Reference formats

Quarto offers different formats for references:

Syntax	Output
@fig-scatter	Figure 1
@tbl-summary	Table 1
@sec-methods	Section 1
[@fig-scatter]	(Figure 1)
[see @fig-scatter]	(see Figure 1)

With square brackets, you can add additional text:

The data show a clear trend [see @fig-scatter].

Customizing language

For non-English documents, you can customize the reference labels in the YAML header:

---
title: "My Report"
lang: de
crossref:
  fig-title: "Abbildung"
  tbl-title: "Tabelle"
  fig-prefix: "Abb."
  tbl-prefix: "Tab."
---

With these settings, @fig-scatter becomes “Abb. 1” instead of “Figure 1”.

Practical example

Here is a document excerpt with cross-references:

# Introduction

This study examines the morphology of Adelie penguins.

# Methods {#sec-methods}

We analyzed 146 individuals from three islands.

# Results

@tbl-descriptive summarizes the descriptive statistics.
As shown in @fig-morphology, bill length and depth correlate
positively (see also @sec-methods for details on data collection).

```{r}
#| label: tbl-descriptive
#| tbl-cap: "Descriptive statistics by island"
# Table code here

```{r}
#| label: fig-morphology
#| fig-cap: "Relationship of bill measurements"
# Plot code here
```

# Tips and common errors

## Label rules

- **Prefixes are required**: `fig-`, `tbl-`, `sec-`
- **No special characters**: Only letters, numbers, hyphens
- **Unique**: Each label can only occur once
- **Lowercase recommended**: `fig-scatter` not `fig-Scatter`

## Common errors

| Problem | Solution |
|---------|----------|
| Reference appears as `@fig-xyz` | Label or caption missing |
| "Figure ??" | Label does not exist or typo |
| Wrong numbering | Use unique labels |

:::{.callout-tip}
If cross-references are not working, check:

1. Does the chunk have a `label` with the correct prefix?
2. Does the figure have a `fig-cap` / the table have a `tbl-cap`?
3. Does the spelling of the reference exactly match the label?
:::

# Customizing numbering

By default, Quarto numbers continuously. For chapter-wise numbering:

```yaml
---
crossref:
  chapters: true
---

Then figures are numbered as “Figure 2.1”, “Figure 2.2”, etc.

TipExercise: Apply cross-references

1. Create a document with at least one table and one figure
2. Assign labels with the correct prefixes (tbl-, fig-)
3. Add captions
4. Reference both elements in the body text with @label
5. Render to Word and check if the numbers appear correctly

Further resources

• Quarto Cross-References — Official documentation
• Quarto Cross-Reference Options — All options

What is next

In Chapter 8, we will learn how to add a table of contents and adjust the page layout — including landscape orientation for wide tables.
